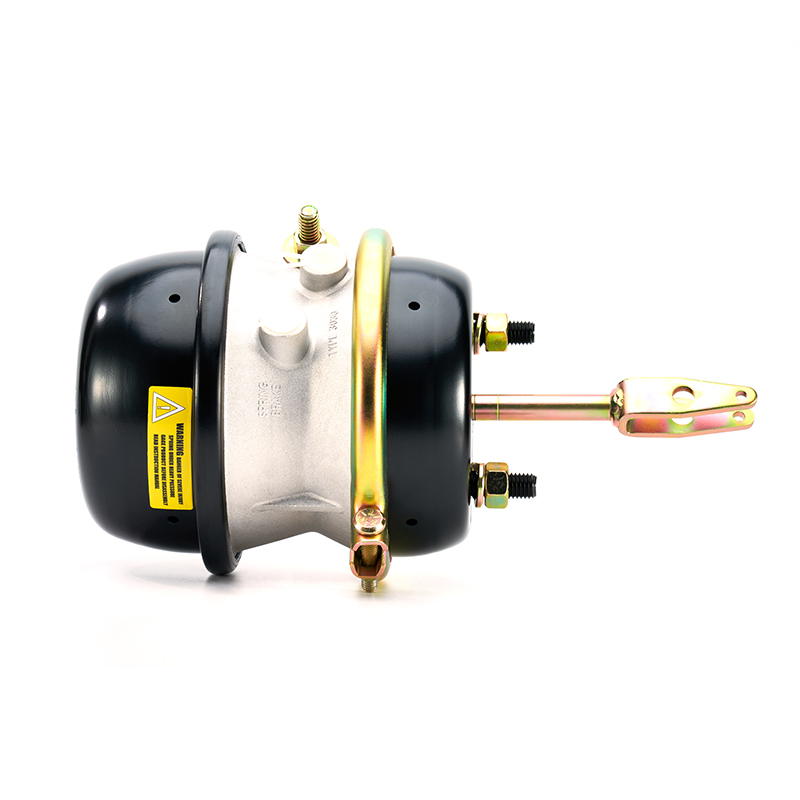

Brand: TARGET Brakes
Part Number: TB-3030SW680
Chamber Style: Double Diaphragm
Distance Between Bolts: 120.7mm
Port Threads: 3/8"-18 NPTF
Stroke: 2.5" (63.5 mm Standard Stroke)
Pushrod Length when caged: 6.80"
Reference No. : Haldex :GC3030S5CW Haldex :LCP3030S5CW Bendix: K067593/K129606 Bendix:EPRO3030STD-68WC
Type: T30/30 S-cam
Max Working Pressure: 1.03Mpa
Working Temperature: -40℃～+80℃
Life Time: Service chamber:above 1,000,000 times Parking chamber:above 200,000 times
Leading Standard: SAE J1469
Finish: E-coating/Zinc-plated
Weight（kg) : 8.8
Customized service: Laser logo-MOQ:100pcs Outer packaging customization：500pcs Pattern customization：500pcs
Adaptive Model: HENDRICKSON
